PROCESSOR

CPU

Ali3715

Flash Memory

32MB Flash

SDRAM

256 MB RAM

DVB-C

TUNER

Input Frequency:

47~862MHz Full band

Input  level:

40dBuV~90 dBuV

Bandwidth

6/7/8 MHz

Input  impedance

75 Ω

CHANNEL

DECODING

Standard

DVB-C EN300 429 (ITU-T J.83 Annex A & C)

Reed Solomon

204, 188, t =8

Demodulation

16/32/64/128/256 QAM

Symbol Rate

3.6-6.952M/s

DEMULTIPLEXER

Standard

ISO/IEC 13818-1, MPEG-4 MP@L3,

Input Max. Bit Stream Rate

100Mbps(Serial)/12.5Mbps(Parallel)

VIDEO

DECODING

Standard

ISO/IEC 13818-2, MPEG-2 MP@ML,H.264 SD video

Aspect ratio

4:3,16:9, Letter box, Pan Scan, Auto

Video format

PAL/NTSC/SECAM

Video resolution

1080P@30fps/1080i/720P/576P/576i

AUDIO

DECODING

Standard

ISO/IEC 13818-3

Decoding

MPEG-1 Layer I/II/III, MPEG-2 Layer II

Output mode

Mix, Left, Right, Stereo

Sampling frequency

32, 44.1, 48KHz

Volume level

24 Levels

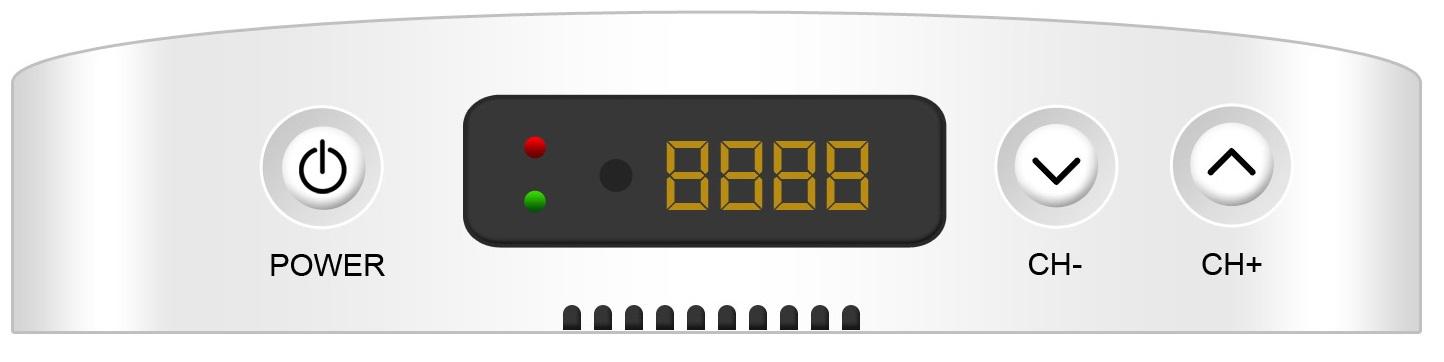

FRONT PANEL

LED Display

4 Digit 7 Segment Numerical LED Display

Smart card slot

1(Bottom side)

IR receiver

38 KHz

Buttons

3 buttons: CH+/-, Standby

REAR PANEL

RF IN/OUT

F-type Female IEC 60169-24

IR Extension

IR Loop out for IR extension

Digital video output

HDMI

AV Output

MINI AV output, 3.5mm TRS

USB Port

USB 2.0 Type A

Power Input

DC Adaptor: 12V/1.2A, Max 15W, Standby<0.5W

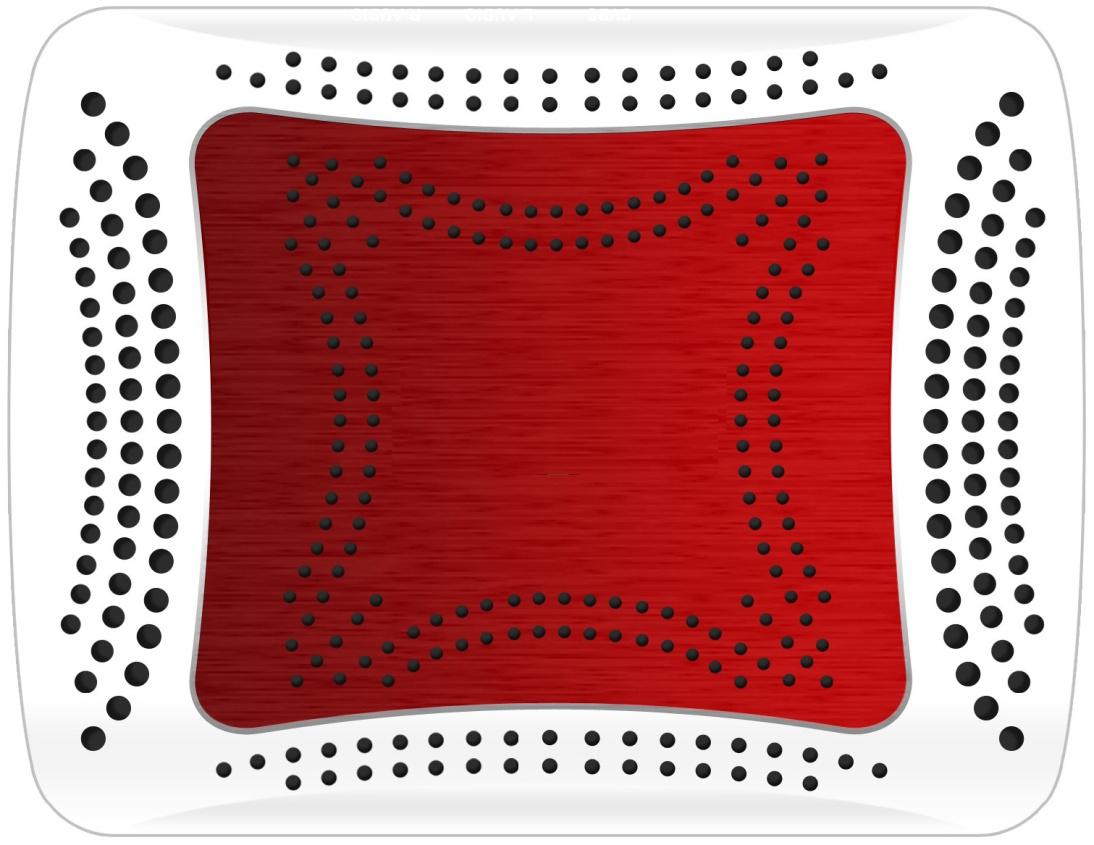

CASE & DIMENSIONS

Material

Plastic fashion casing

Temperature

-10~50℃

Humidity

<95%
