PROCESSOR

CPU

Ali3515

Flash Memory

8 MB Flash

SDRAM

128 MB RAM

TUNER

(DVB-S2)

Input Frequency

950~2150 MHz

Loop Out Frequency

950~2150 MHz

Input Level

-65~-25 dBm

Input Impedance

75Ω

LNB Power

(Vertical:) 13.5 ±1V;

(Horizontal:) 18.5 ±1V;

Max Current: 450mA

CHANNEL DECODING

(DVB-S2)

Standard

DVB-S[EN300 421], DVB-S2[EN302 307]

Demodulation

QPSK/8PSK

Reed Solomon

204,188,t=8

Symbol Rate

10~30 MS/s, 8PSK

2~45MS/s, QPSK

22KHz Tone

Frequency: 22±2KHz;

Amplitude: 0.6±0.2V

DiSEqC

Version 1.0 & 1.2 ,USALS compatible

FEC Code Rates

DVB-S: Viterbi

1/2,2/3,3/4,5/6,7/8,RS204,188
DVB-S2:
QPSK:1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10
8PSK: 3/5,2/3,3/4,5/6,8/9,9/10

DEMULTIPLEXER

Standard

ISO/IEC 13818-1, MPEG-4 MP@L3,

Input Max. Bit Stream Rate

100Mbps(Serial)/12.5Mbps(Parallel)

VIDEO

DECODING

Standard

ISO/IEC 13818-2, MPEG-2 MP@ML,H.264 SD video

Aspect ratio

4:3,16:9, Letter box, Pan Scan, Auto

Video format

PAL/NTSC/SECAM

Video resolution

1080P@30fps/1080i/720P/576P/576i

AUDIO

DECODING

Standard

ISO/IEC 13818-3

Decoding

MPEG-1 Layer I/II/III, MPEG-2 Layer II

Output mode

Mix, Left, Right, Stereo

Sampling frequency

32, 44.1, 48KHz

Volume level

24 Levels

FRONT PANEL

LED Display

4 Digit 7 Segment Numerical LED Display

Smart card slot

1(Bottom side)

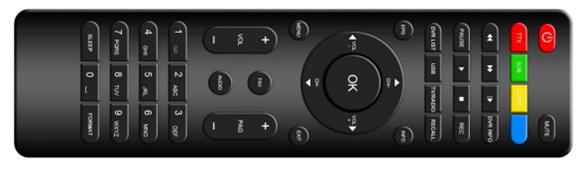

IR receiver

38 KHz

Buttons

3 buttons: CH+/-, Standby

REAR PANEL

RF IN/OUT

F-type Female IEC 60169-24

IR Extension

IR Loop out for IR extension

Digital video output

HD

AV Output

MINI AV output, 3.5mm TRS

USB Port

USB 2.0 Type A

Power Input

DC Adaptor: 12V/1.2A, Max 15W, Standby<0.5W

CASE & DIMENSIONS

Material

Plastic fashion casing

Temperature

-10~50℃

Humidity

<95%
