SECTION

ITEM

DESCRIPTION

PROCESSOR

CPU

GX-6605

Flash Memory

4MB

SDRAM

64MB

TUNER

(DVB-S2)

Tuner Type

AIROHA AV2012 On board with shield

Input Frequency

950 ～ 2150MHz

Loop Out Frequency

950 ～ 2150MHz

Input Level

-65dBm ～ -25dBm

Input Impedance

75Ω

LNB Power

(Vertical:) 13V DC;

(Horizontal:) 18V DC;

Max Current: 400mA

Loop-Through

Signal loop through

CHANNEL DECODING

(DVB-S2)

Standard

DVB-S,DVB-S2

Demodulation

QPSK, 8PSK

Symbol Rate

2 ～ 90MSPS（Code Rate 1/2）

FEC Code Rates

DVB-S: Viterbi 1/ 2, 2/3, 3/4, 5/6. 7/8, RS204,188

DVB-S2: QPSK:1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10

8PSK:3/5,2/3,3/4,5/6,8/9,9/10

8PSK:10-30 MS/s, QPSK:2-45MS/s

DEMULTIPLEXER

Standard

MPEG2 ISO/IEC 13818-1

Input Max.Bit Stream Rate

100Mbps(Serial)/12.5MBps(Parallel)

VIDEO

DECODING

Standard

ISO/IEC 13818-2, MPEG-2 MP@ML, MPEG 4 & H.264

Aspect ratio

4:3、16:9

Video format

PAL/NTSC/SECAM

Video resolution

1080p@50/60Hz, 720p/576p/480p

AUDIO

DECODING

Standard

ISO/IEC 13818-3

Decoding

MPEG-1 Layer I and II, MPEG-2

Output mode

PCM, AC3

Sampling frequency

32KHz、44.1KHz、48KHz

Volume level

32 Levels

REAR PANEL

LNB IN

IEC 169-24, F-Type, Female

IR

38KHz

Digital video output

HDMI

RS-232

For SW-Update or other functions

AV output

CVBS, Audio-L and Audio-R

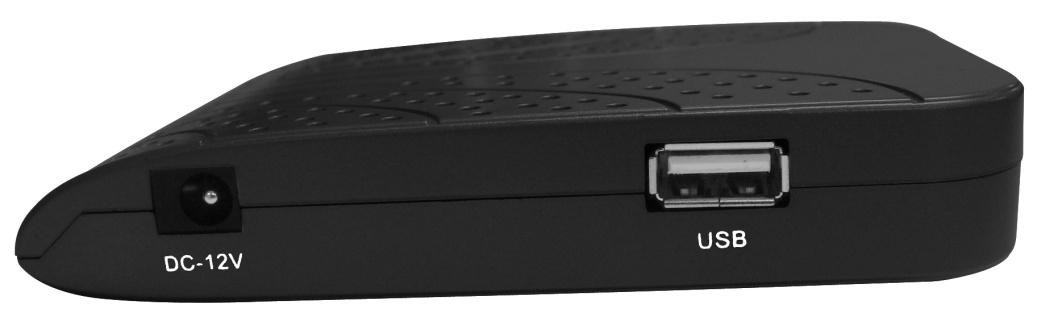

DC IN

12V

USB Port

USB 2.0 Type A

CASE & DIMENSIONS

Material

All plastic

Temperature

0～40℃

Humidity

<95％

ACCESSORY

A/V Cable

3 RCA - RCA, 1.2m length

HDMI

1.0m length

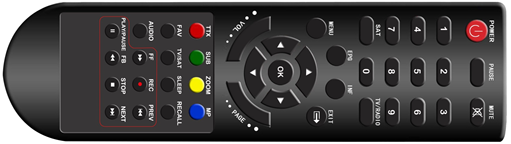

RCU

IR Carrier 38 KHz, 2x1.5 AA Batteries

User Manual

A5, black & white
