SPS_100W
    Publish time 2016-07-13 11:09

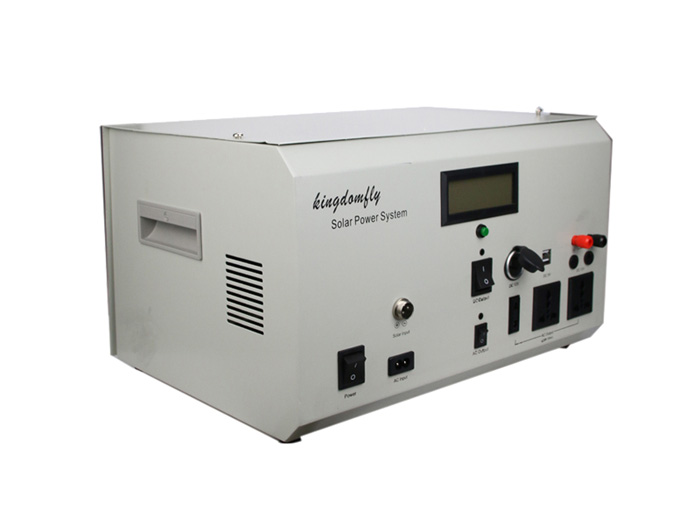

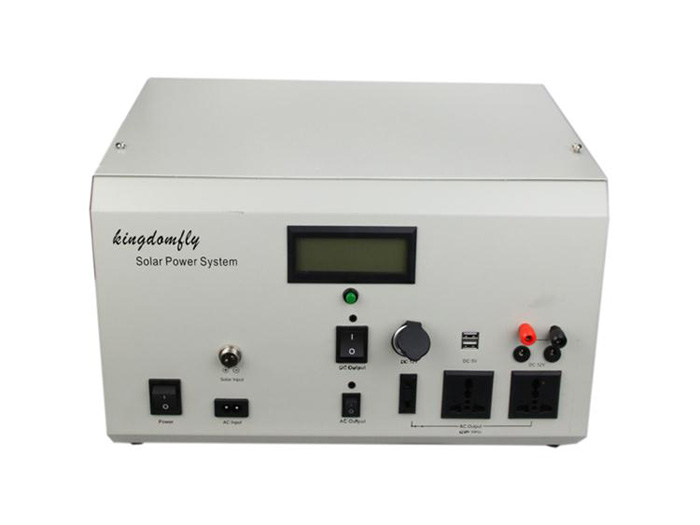

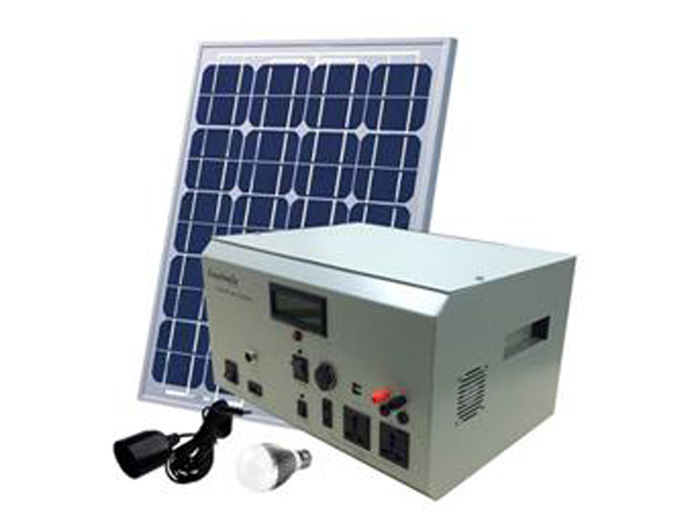

KDF SPS_100W This product is high performance，family used  solar power system，which can receive energy and store it in battery by solar energy on sunny day，and supplies electric power for varies appliances such as electric fan，lighting lamps, television, portable computer etc．It can supply power for both DC and AC electric application . It’s can also be charged by main power AC electricity to supply electricity in case of  main power is not available. It’s very helpful and useful for home electric supply.
SPS_100W

  Product Details

  Features
 ◆  Both DC and AC output
 ◆  LCD display to show the battery volume ,charging condition and output condition.
 ◆  Solar Feedback Circuit Protection
 ◆  Output Short-circuit Protection
 ◆  Solar「+」「-」anti-access protection
 ◆  Output「+」「-」anti-access protection
 ◆  Over Charged Protection
 ◆  Over Discharged Protection
 ◆  Over Load Protection
 ◆  Over-Temperature Protection
 ◆  Solar input and Main power charger input

 Technical parameters



  Specification   Value/Material
  Item No. KDF   SPS_100W
  Solar Recommended   Specification   Poly silicon
  Working Voltage/Power   18V100W
  Battery Recommended   Rated Voltage/Capacity   12V65AH
  Specification   Lead Acid
  Charging Controller   Operating Voltage   12V
  Input Voltage   0V~21V
  Input current   MAX:10A
  Power Consumption   MAX: 10A
  Low Voltage Disconnect(LVD)   10.8V
  Low Voltage Reconnect(LVR)   12.3V
  High Voltage Discharge( HVC)   14.6V
  High Voltage Recharge(HVR)   13.8V
  Temperature Protection   60℃
  DC Output   DC output & Application   USB 5V2A
  DC output & Application   DC 12V10A(Max)
  AC Output   Output Wave   modified sine wave
  Input Voltage   11V~15V
  Output Voltage   110V±5%/220V±5%
  Output Frequency   60Hz±2Hz/50Hz±2Hz
  Rated Output Power   300W
  Maximum VA   600VA
  Maximum Efficiency   92%
  Temperature   0-40℃
  Over Temperature   60℃~70℃
  Low Voltage Alarm   11V
  Low Voltage Shut off   10.5V
  High Voltage Shut off   16V
