SPS_5W_01
    Publish time 2016-07-13 11:12

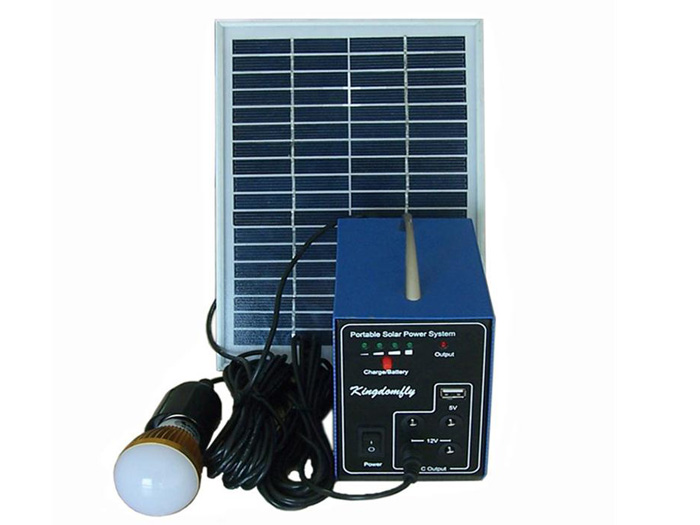

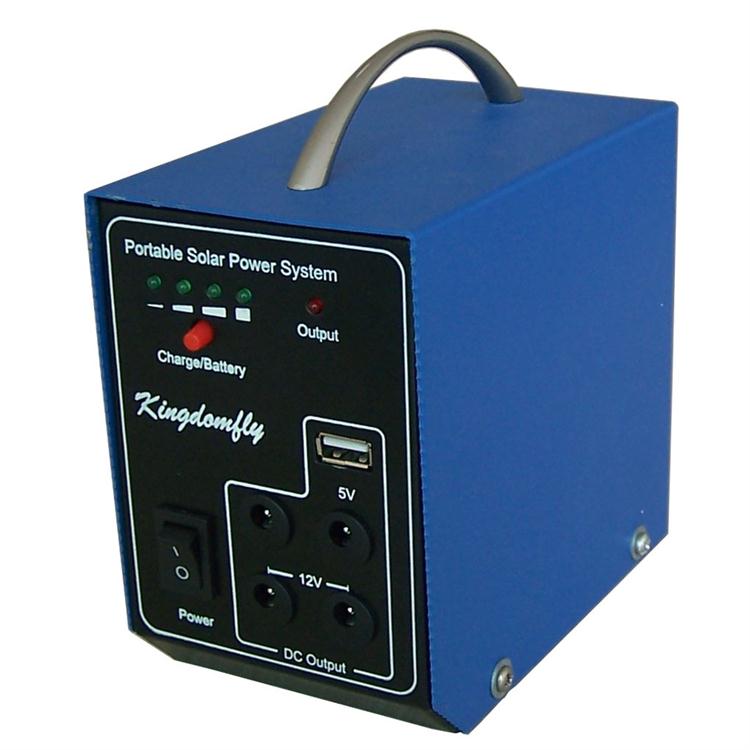

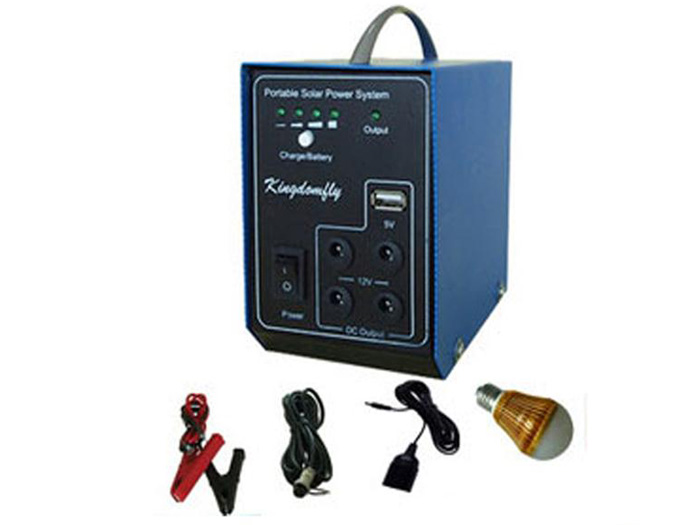

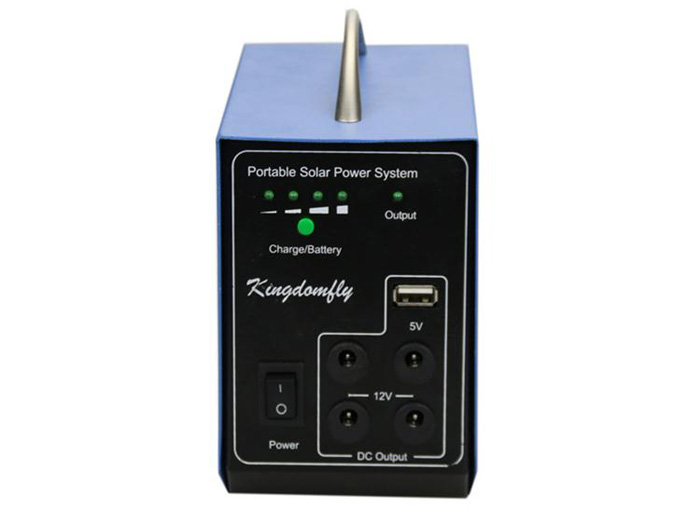

KDF SPS_5W_01 This product is high performance，family used portable solar power system，which can be charged by solar energy on sunny day, and supplies electric power for varies DC electric appliances such as electric fan，lighting lamps, cell charger etc．It is very helpful and useful for home electric supply.
SPS_5W_01

  Product Details



  Features:

  ◆ Low Standby Power Consumption
 ◆ Solar Feedback Circuit Protection
 ◆ Output Short-circuit Protection
 ◆ Small and Portable
 ◆ Over Charged Protection
 ◆ Over Discharged Protection
 ◆ Over Load Protection
 ◆ Over-Temperature Protection
 ◆ Easily customized , suitable for Lead Acid Battery or Li Cell

  Technical parameters



  Specification   Value/Material
  Item No. KDF   SPS_5W_01
  Solar   Specification   Poly silicon
  Working Voltage/Power   18V5W
  Battery（Inside）   Specification   Lead Acid
  Rated Voltage/Capacity   12V4AH
  Charging Controller   Operating Voltage   12V
  Input Voltage   17.3V~21.6V
  Input current   5A
  Power Consumption   3mA
  Low Voltage Disconnect(LVD)   10.8V
  Low Voltage Reconnect(LVR)   12.3V
  High Voltage Discharge( HVC)   14.6V
  High Voltage Recharge(HVR)   13.8V
  DC Output   DC output & Application   USB 5V1A
  DC output & Application   DC  12V1A*4
